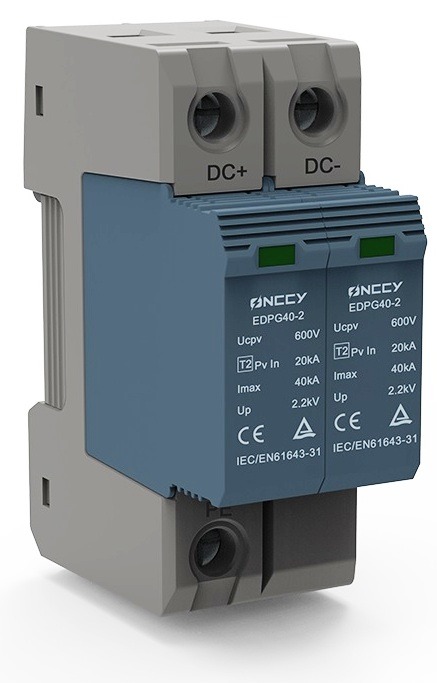

DC Surge Protector Device (SPD)

DC Surge Protection Device SPD 600VDC for Solar Panel PV

EDP series surge protector has reliable voltage protection level, super surge discharge ability and safety overload ability, used for lightning protection of DC system. This product is equipped with high energy MOV chip, when the system due to tight stroke or other reasons to lead to over voltage, with nanosecond response speed to introduce the voltage to the earth, so as to protect the equipment.

Product Benefits

• Type2 DC power surge protectors
• From 24 to 600 Vdc DC network
• Imax: 40 kA
• Pluggable module
• Remote signaling option
• IEC 61643-11 compliance
