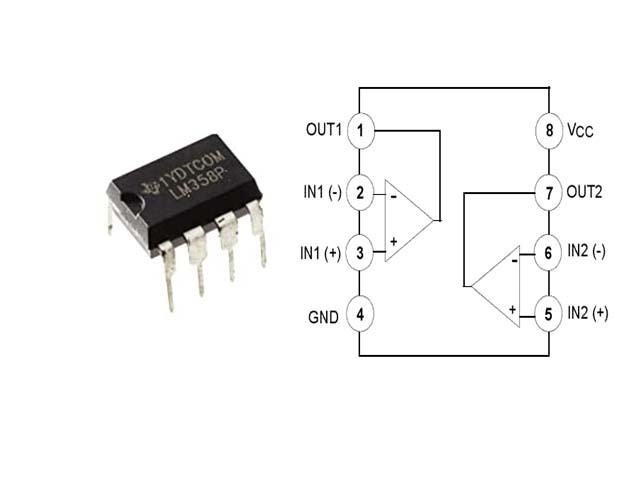

LM358 – dual op amp dip-8

The LM358 is a dual operational amplifier (op-amp) IC with two op-amps in a single package, designed to operate from a single power supply. It is a low-power, general-purpose op-amp commonly used for applications like amplifiers, active filters, and compactors. It can operate over a wide range of supply voltages (3V to 32V), has internal frequency compensation, and its input common-mode range includes ground.

• • Dual op-amp: Contains two independent, high-gain op-amps in one package.
  • Wide voltage range: Can operate from a single power supply with voltages from 3V to 32V, or dual supplies from ±1.5V to ±16V.
  • Low power consumption: Features low supply current that is largely independent of the supply voltage, typically


    700μA700 mu cap A

    700𝜇𝐴

    maximum.

  • Internal frequency compensation: Simplifies circuit design as it does not require external compensation.
  • Ground-referenced operation: The input common-mode voltage range includes ground, allowing it to sense signals near zero volts, even from a single power supply.
  • High gain: Offers a large DC voltage gain of


    100dB100 d cap B

    100𝑑𝐵

    .

• Low input offset voltage: Has a low input offset voltage, with a typical value of


  2mV2 m cap V

  2𝑚𝑉

  .

• Internal RF and EMI filter: Some versions include this for improved performance.

Common applications

• Amplifiers: Ideal for transducer amplifiers and general-purpose amplification.
• Active filters: Can be used to create active filters with various frequency responses.
• Comparators: Functions as a comparator to compare two input voltages.
• Voltage regulators: Can be part of a voltage regulation circuit.
• Oscillators: Used in the design of oscillators.
• Sensor and instrumentation circuits: Suitable for a wide range of sensing applications due to its ability to operate near ground.
• Audio applications: Used in various audio circuits.
